Tavsif
Gofret kelebek klapan suv ta'minoti va drenajlash, kanalizatsiya va sug'orishning turli quvurlarida keng qo'llaniladi, bu esa diskning 1/4 burilishida tez ochilishi va yopilishi orqali quvur tizimidagi o'rta oqimni kesish uchun ishlatiladi. Gofret kelebek vanalarining dizayni, shu bilan birga, sozlash funktsiyasiga ega.

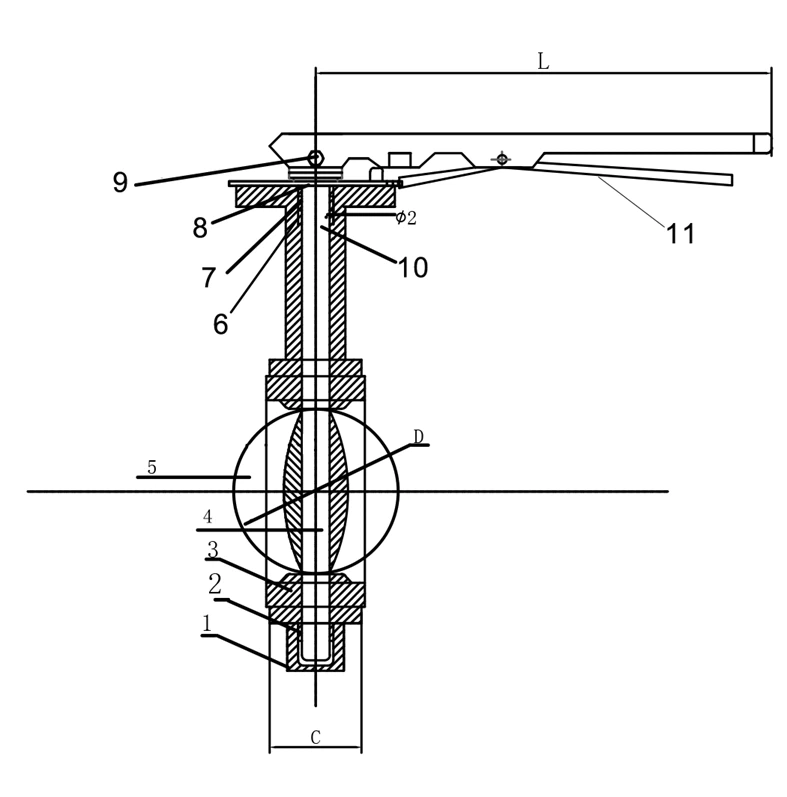

Komponentlar (tutqich)
|
YO'Q. |
Ism |
Material |
|
1 |
Tana |
GGG50 |
|
2 |
Bushing |
Polimer |
|
3 |
Kauchuk yeng |
EPDM/NBR |
|
4 |
Poyasi |
SS410 |
|
5 |
Disk |
GGG50 |
|
6 |
Bushing |
Polimer |
|
7 |
O-ring |
EPDM |
|
8 |
Bushing |
Polimer |
|
9 |
Tutqichli murvat |
SS201 |
|
10 |
Poyasi |
SS410 |
|
11 |
Tutqich |
GGG50 / Karbonli po'lat |
O'lchamlari
Komponentlar (qurt tishli)
|
YO'Q. |
Ism |
Material |
|
1 |
Tana |
GGG50 |
|
2 |
Bushing |
Polimer yeng |
|
3 |
O'rindiq |
EPDM |
|
4 |
Poyasi |
SS410 |
|
5 |
Disk |
GGG50/SS304/SS316 |
|
6 |
Bushing |
Polimer yeng |
|
7 |
Bushing |
Polimer yeng |
|
8 |
Kengaytiruvchi kauchuk halqa |
NR |
|
9 |
O-ring |
EPDM |
|
10 |
Bushing |
PTFE |
|
11 |
Chuvalchangli mexanizm |
GGG50 |
|
12 |
Ichki aylana |
50Mn |
|
13 |
Bolt |
SS201 |
|
14 |
Bahor yuvish mashinasi |
SS201 |
|
15 |
Yassi kir yuvish mashinasi |
SS201 |
O'lchamlari
